After months of planning, things are really happening. I'm building my studio, mostly because me (and my wife) both have music as our main hobby. We need a solid room that properly soundproofed. For the control I will be converting the garage, and for my live room I will need to build a new building. As you can see in the photos I allready have most of my insulation ( 140 m2 / 70 packs (40 kilo!! each). Today I started moving them to my messy shed, where I will stock them, I now have 26 done, once I get all 70 into place I can start working on converting my garage to my control room. Next week the first groundwork will start for the foundation of the live room. There will be 2 buildings instead of 1, because of building licences...blablabla...sucks but it will work through video / tv connection. Anyhow enough with the jibajaba..here are the pics and more info:

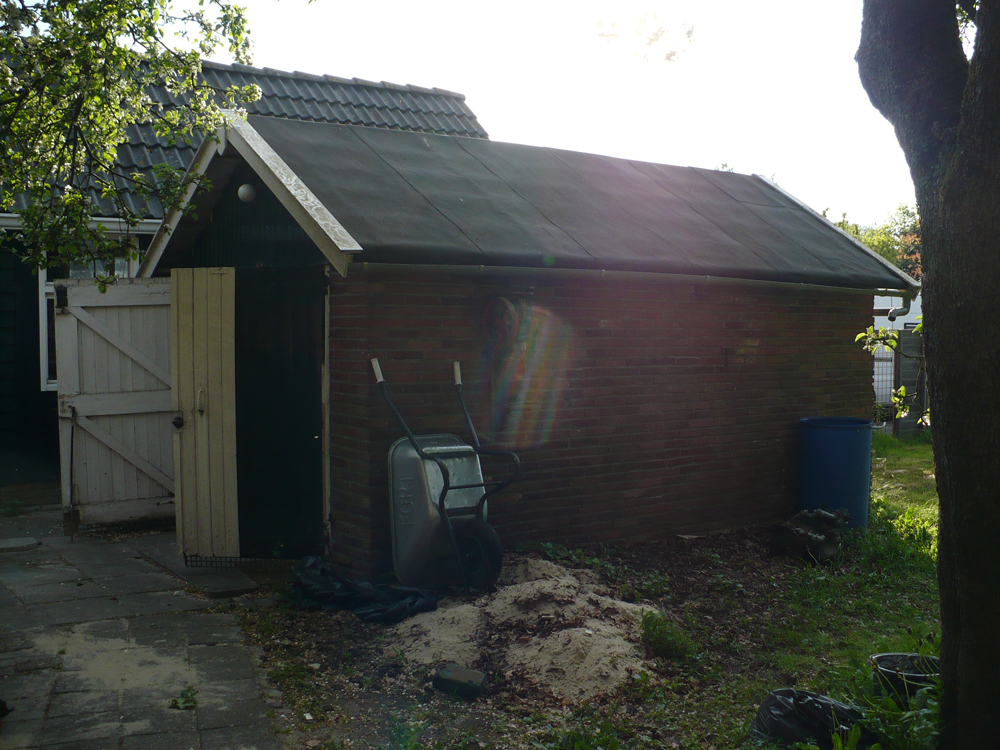

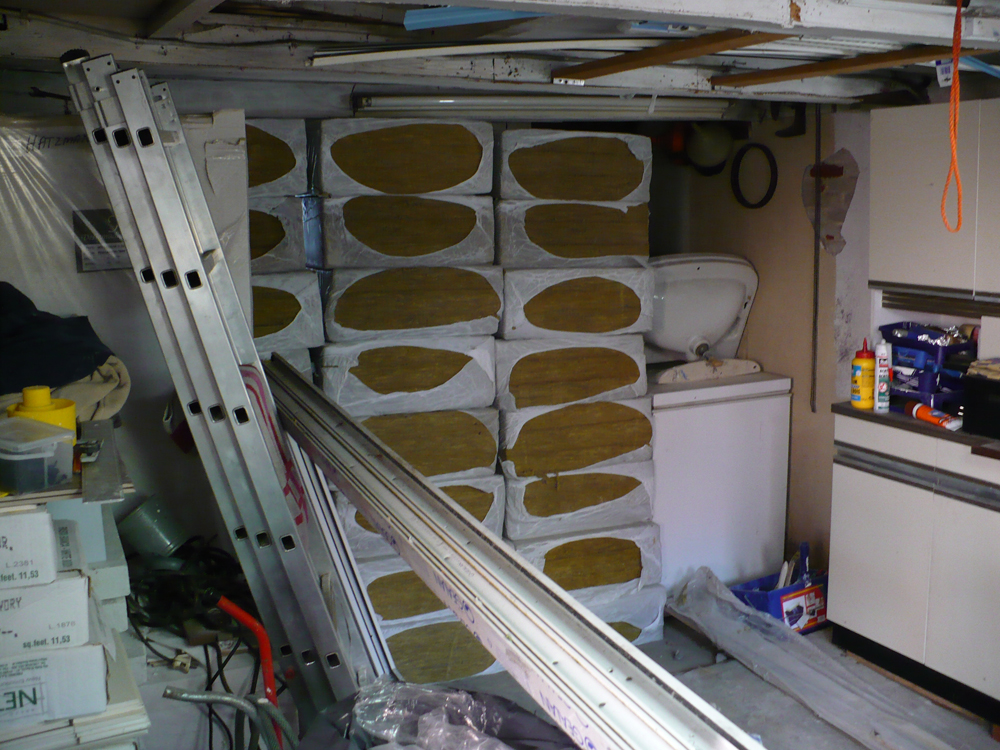

First my shed packed with 26 packs of insulation allready:

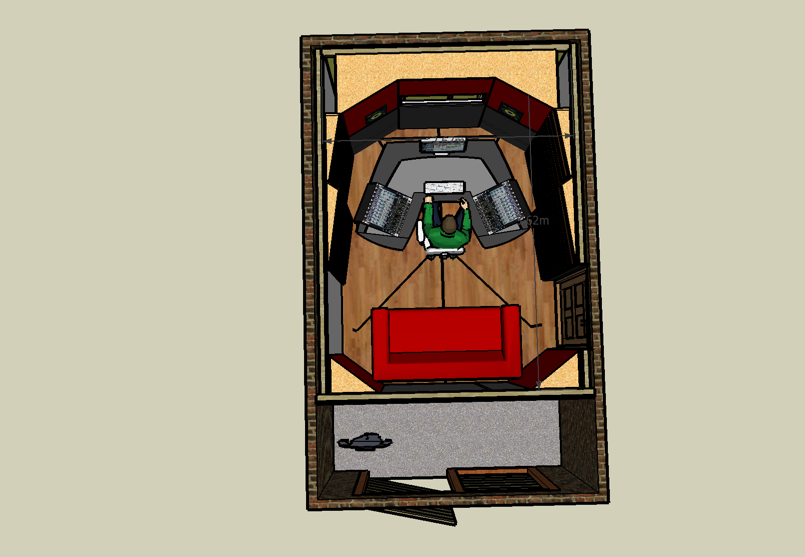

Control room dimension: 3.5 x 5 meter = 17.5 m2 ( height is 2.70 )

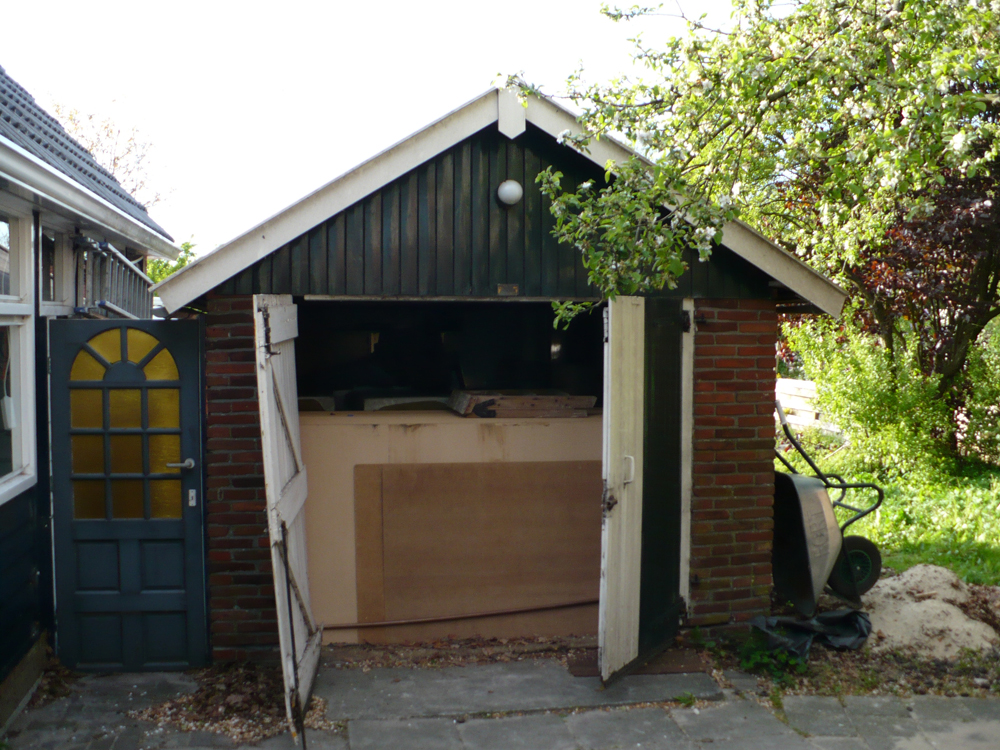

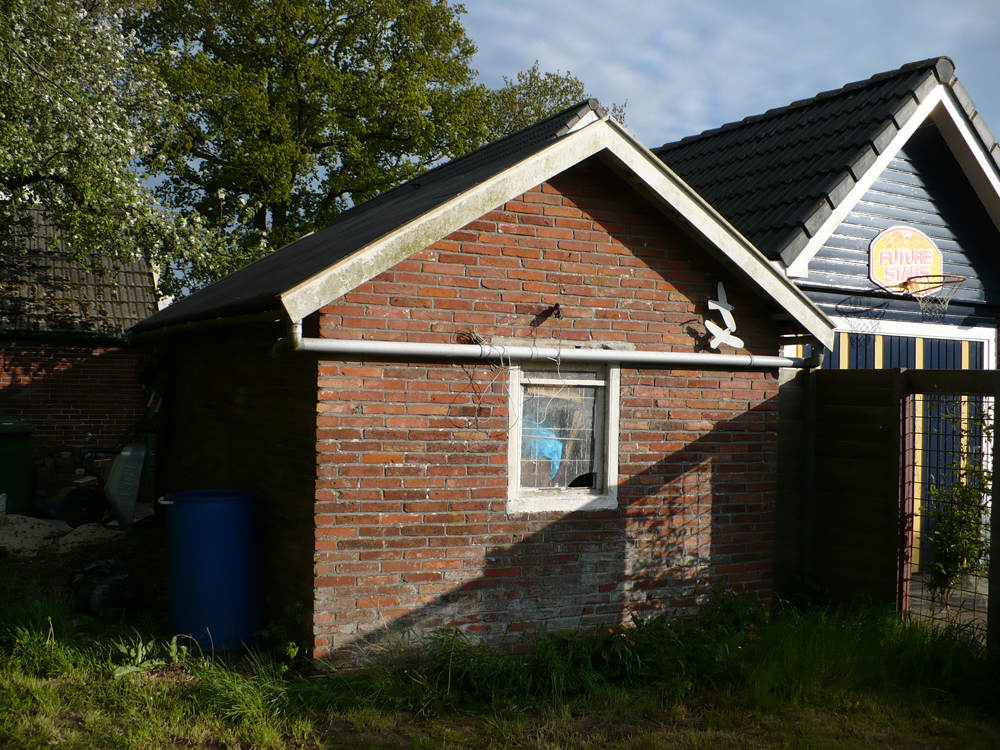

Here is the before pic, and what it should get to. In the 3D model you see a the backwall will be actually extended to the backwall.

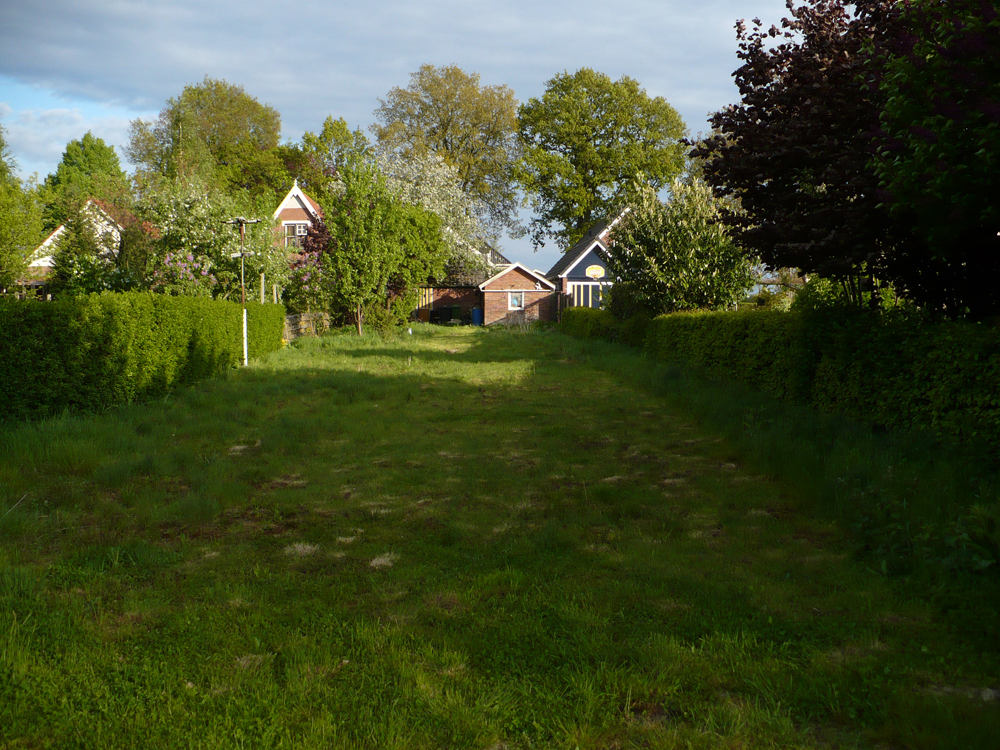

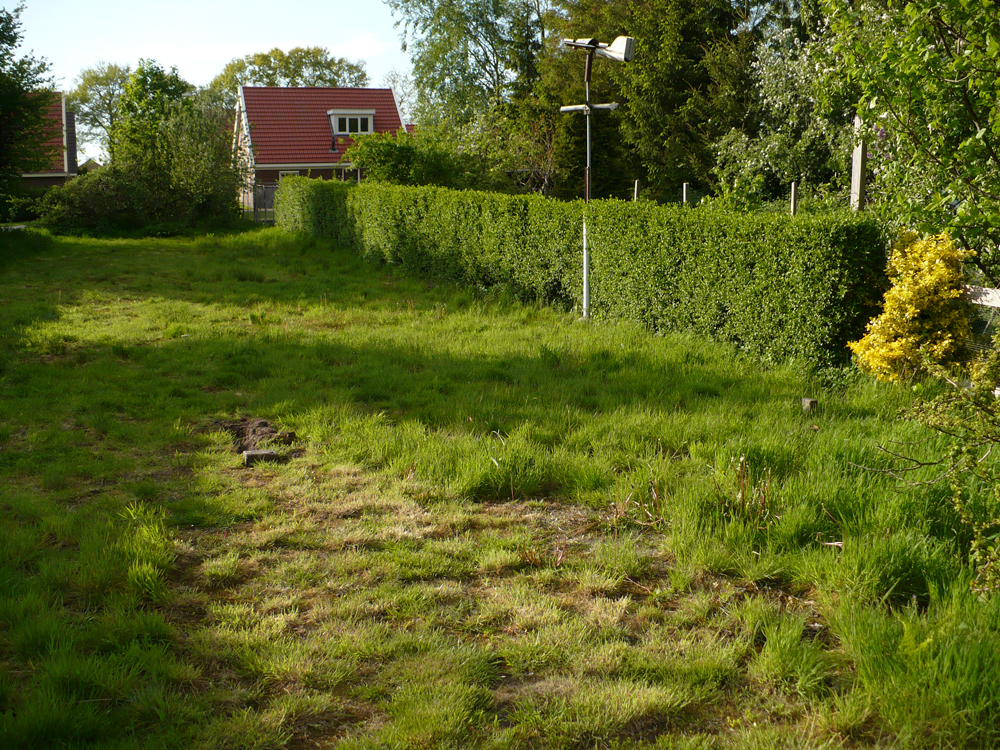

Overview of the garden, there will be a 10 meter walk between the control & live room.
Live room dimensions: 4.5 x 6.5 meter = 29,25 m2 ( height: 3 meter )

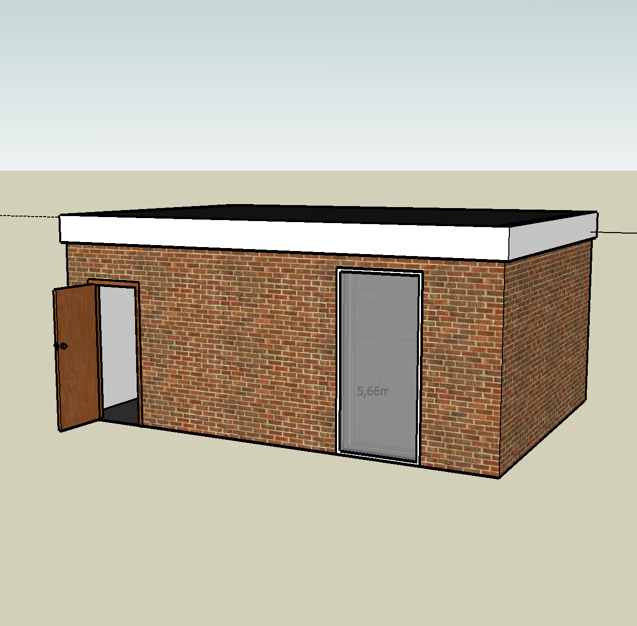

Will have the sketchup of the inside almost finished...outside is pretty much set:
I've allready got a curious neighboor:

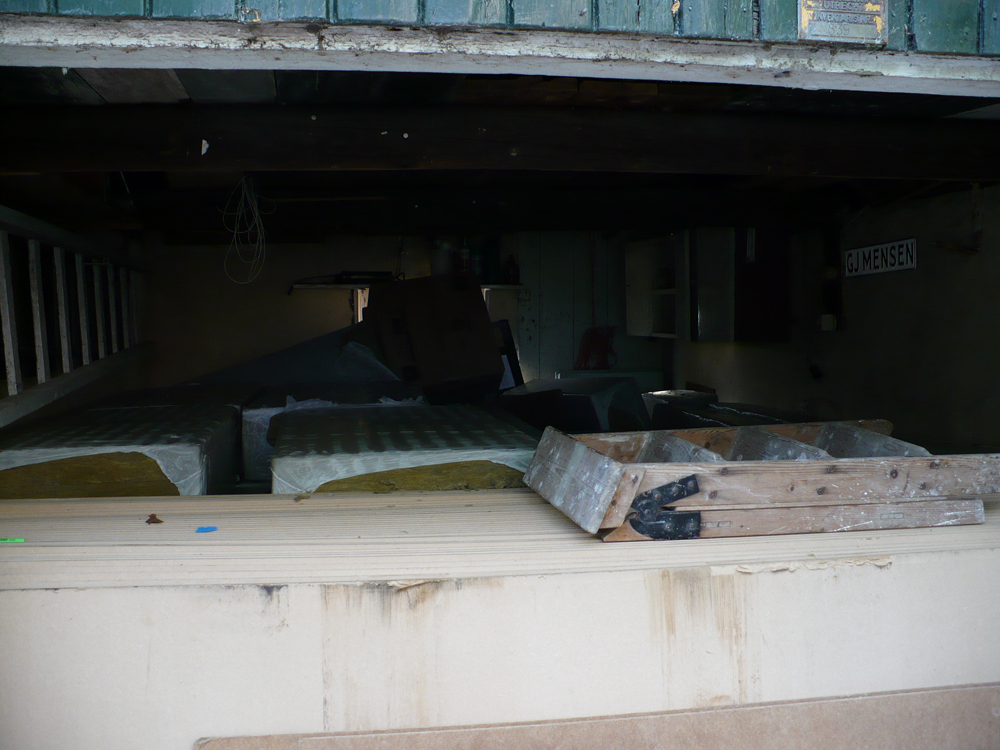

Another view of the currently still fully stock garage ( another 44 packs of insulation & 40 sheets of 20mm MDF to move to my shed...pfff )..
As for some of the guys might be interested in my wall construction:
It will be a 2 leaf design.
1st Leaf: Single brick wall ( 5cm x 10cm x 20cm ) | 20MM concrete plaster | 12 MM Gypsum | 20 MM MDF | 12 Gypsum
2nd Leaf: Gypsum 12mm | Gypsum 12mm | Insulation 10cm (150kg/m3)
Once I have the foundation ready / walls up and main construction finished I will tidy up the garden, till then, it will get messy anyway!
